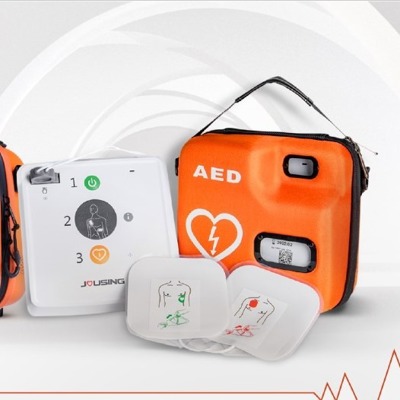

iAED-S1 automatic external defibrillator False
Description
The iAED-S1 is a compact, lightweight and ultra-simple defibrillator. It provides accurate cardiac rhythm identification, and rapid 7-second charging.
The low-energy biphasic truncated exponential (BTE) defibrillation technology results in less myocardial damage, and greater defibrillation efficiency.
Product features:
- Low-energy, high-current biphasic waveform technology.
- Up to 200J energy.
- Remote wireless data transmission.
- Annotated ECG, event records self-test information, etc.
- Equipped with CPR instructions.
- Standby time >5 years.
- Drop resistance: 1.2m.
- Ingress protection: IP54
- Operating temperature: -20 to 50 degrees centigrade
Usage instructions:
- Remove clothing and exposing the bare chest.
- Tear open the package and take out the electrodes.
- Peel the electrodes from the protective sheeting.
- Stick the electrodes onto the correct position on patient.
- After pads are applied to the patient's chest, the iAED-S1 will automatically analyse the patient's heart rhythm. If a shockable rhythm is detected, the iAED-S1 will direct the responder to deliver a shock through the pads for defibrillation.
